Phoenix Imaging offers a Single-Sided Lighting System for projects that requires low equipment cost but well controlled Illumination. The standard configuration for the Single-Sided Lighting System is to illuminate the volume from the top. The models MIB-140™ and MIB-145™ provide an advanced illumination system with active feedback loop to maintain constant LED lighting module output.

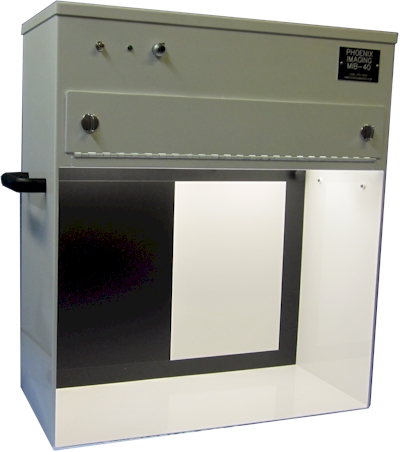

Phoenix Imaging MIB-145 Entry Level Single-Sided Illumination Manual Inspection Booth
The system is designed as a desktop model with choice of inspection backgrounds. The backgrounds are available as standard Black / White, all Black, or all White. Special colors are also available, consult the factory for options. The heavy duty enclosure construction is designed for years of trouble-free use. The finish is offered in either painted steel or stainless steel (extra cost).
The system is built around our 3608 Lighting Controller. This illumination system is designed to monitor the LED lamp output 500 times per second and relay the information back to the controller so that it maintains the light at the intensity selected by the user. The light intensity of model MIB-145™ is controlled with a high precision 10-turn potentiometer mounted on the front of the enclosure. The system provides a visual signal to indicate that the system is operating correctly. The more advanced MIB-140D™ offers a digital to analog circuit to precisely adjust the light intensity and will maintain the target Lux value entered on the HMI screen.
The Single-Sided Lighting System come standard with a universal power input for operation from 110-220VAC, 50-60 Hz, 1Ø. All of the systems are equipped with Power Factor Correction built in to provide clean power to the LED lighting modules even if the power feed experiences voltage variations. The Lighting Controller is also CE compliant.
The single sided lighting of the MIB-140 & MIB-145 series is ideal for simple product inspections. The inspection volume is large enough for the inspection larger products that require cosmetic or color verification. The system is the smallest of the units available from Phoenix Imaging and can be moved easily with 2 people.
