Model MIB-140D (Current Version is 5.0)
The previous generation MIB-40 and the new MIB-140D have identical physical dimensions. The MIB-40 uses fluorescent lamps for illumination and the MIB-140 uses the new LED lighting modules. The more advanced MIB-140D implements a PLC and HMI display for access to system operations such as Pacers and Counters. The MIB-140D offers digital lighting control and adjust light intensity by entering desired Lux value on the HMI.
The MIB-140D is designed as Table Top Manual Inspection Booths for Laboratory or Production QA Stations. Units can be purchased in White Powder Coat or Stainless Steel configurations, dimensions remain the same. The basic configuration of the MIB-140™ system is illustrated below.

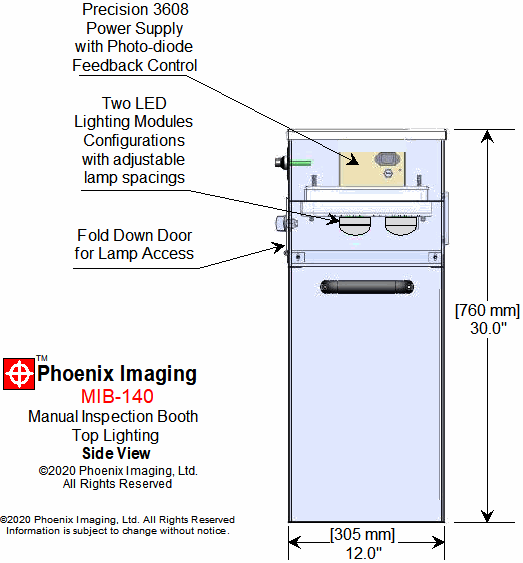

MIB-140 Physical Dimensions[/caption]
The MIB-140 come standard with a universal power supply configuration for operation with 110 – 220 VAC, 50 – 60 Hz, 2A operation (3A Startup) single phase power.
